Jaw crusher
Jaw crusher Introduction:
Application: Widely used in mining, smelting, building materials, road, railway, water conservancy and chemical industries.
Applicable materials: granite, dolomite, pebble, quartz stone, iron ore, calcite and other materials.

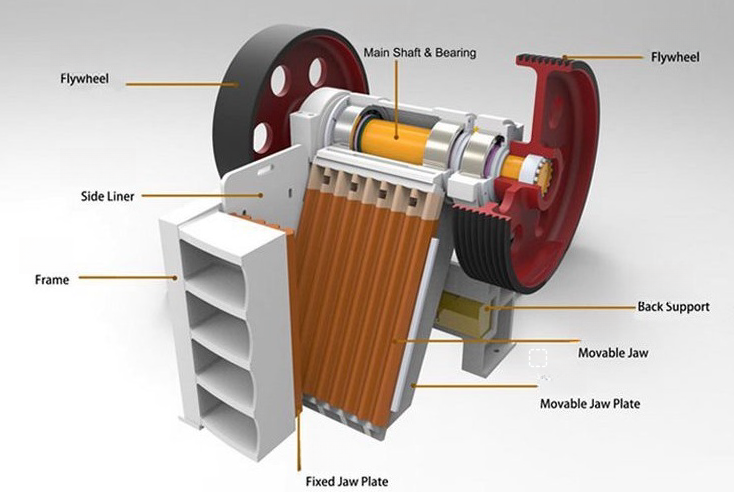

Jaw crusher is mainly composed of frame, eccentric shaft, large pulley, flywheel, side protection plate, elbow plate, elbow plate backseat, adjusting screw, reset spring, fixed jaw plate and movable jaw plate and other components.
Advantages of jaw crusher:
Jaw crusher has the advantages of large crushing ratio, no crushing blind area, environmental protection and energy saving, and high output.
Jaw crusher working principle:

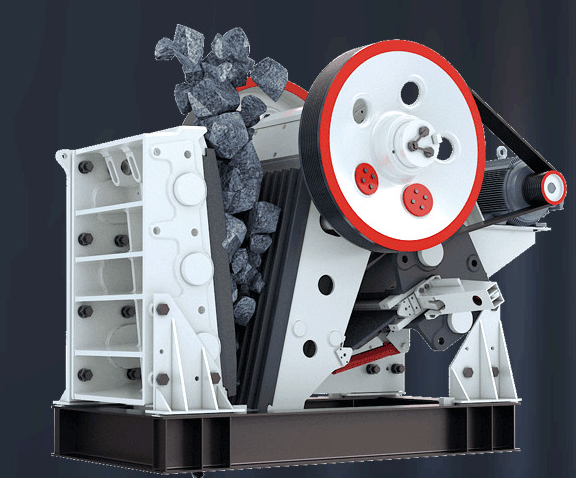

PE, PEX series jaw crusher is composed of fixed jaw plate, movable jaw plate and side protection plate crushing chamber, motor as the power, through the motor pulley, by the triangle belt and groove wheel drive eccentric shaft, so that the moving jaw according to the predetermined track for reciprocating movement, so that the material into the crushing chamber to be broken, and through the lower discharge port will be finished material.
Technical parameters:
|
Model number |
Feed port size (mm) |
Processing capacity (t/h) |
Eccentric shaft speed (r/min) |
Motor power (kW) |
Overall dimension (mm) |
|
PE500×750 |
500×750 |
45-100 |
275 |
55 |
1890×1916×1870 |
|
PE600×900 |
600×900 |
90-180 |
250 |
55-75 |
2520×1840×2303 |
|
PE750×1060 |
750×1060 |
130-260 |
250 |
90-110 |
2620×2302×3110 |
|
PE900×1200 |
900×1200 |
220-380 |
200 |
132 |
3789×2826×3025 |
|
PE1000×1200 |
1000×1200 |
280-500 |
200 |
132 |
3889×2826×3025 |
|
PE1200×1500 |
1200×1500 |
460-900 |
190 |
200 |
4930×3150×3700 |
